Yangchai YZ4105ZLQ Truck & Bus Diesel Engine

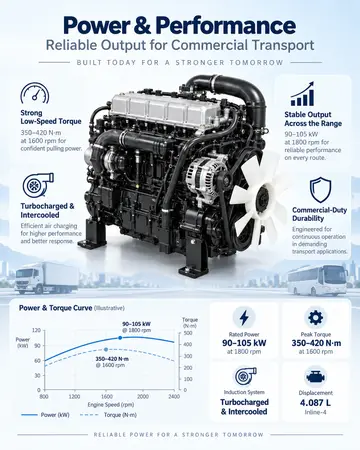

Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.

Yangchai YZ4105ZLQ Truck & Bus Diesel Engine

The Yangchai YZ4105ZLQ is a vertical inline-4, 4-stroke, water-cooled, turbocharged and intercooled diesel engine built for light trucks and buses.

Engine Model
YZ4105ZLQ
Engine Type
Vertical in-line, 4-stroke diesel
Rated Power
90–105 kW at 1800 rpm
Peak Torque
350–420 N·m at 1600 rpm
Displacement
4.087 L
Cylinders
4, inline
Request a Quote WhatsApp
  • Test report & video
  • Export wooden-box packing
  • FOB / CIF Shanghai
  • Warranty confirmed per order

Overview

The Yangchai YZ4105ZLQ is a vertical inline-4, 4-stroke, water-cooled, turbocharged and intercooled diesel engine built for light trucks and buses. Delivering 90–105 kW at 1800 rpm and 350–420 N·m of peak torque at 1600 rpm from a 4.087 L displacement, it provides strong low-speed pulling power and dependable performance for commercial transport. Its direct-injection combustion and intercooled turbocharging make it efficient and durable in demanding daily duty.

Key selling points

  • Robust inline-4 architecture engineered for trucks and buses
  • Turbocharged and intercooled for efficient, high-density combustion
  • Strong low-speed torque of 350–420 N·m at 1600 rpm for confident pulling
  • Rated 90–105 kW at 1800 rpm for reliable commercial transport
  • Direct injection and water cooling with Euro 2 emission compliance

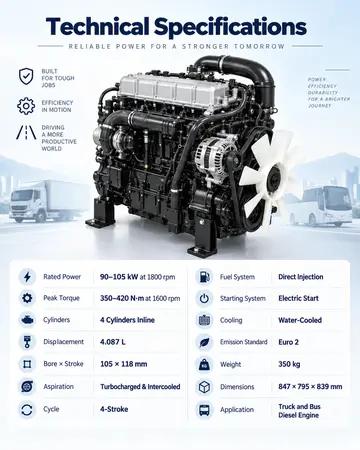

Technical specifications

Yangchai YZ4105ZLQ Truck & Bus Diesel Engine technical specifications
Engine ModelYZ4105ZLQ
Engine TypeVertical in-line, 4-stroke diesel
Rated Power90–105 kW at 1800 rpm
Peak Torque350–420 N·m at 1600 rpm
Displacement4.087 L
Cylinders4, inline
Bore x Stroke105 x 118 mm
AspirationTurbocharged & intercooled
CombustionDirect injection
CoolingWater-cooled
StartingElectric start
Emission StandardEuro 2
Weight350 kg
Dimensions (L x W x H)847 x 795 x 839 mm

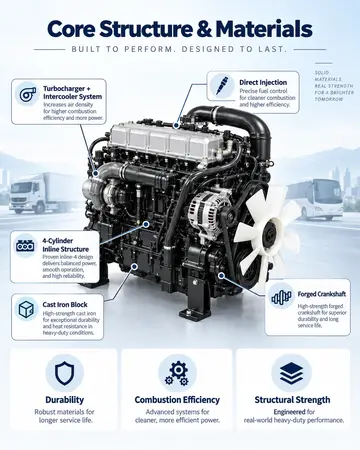

Features & highlights

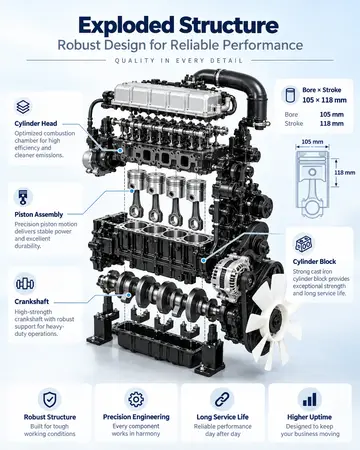

  • High-strength cast iron block for exceptional durability and heat resistance
  • Forged crankshaft for robust support under heavy-duty operation

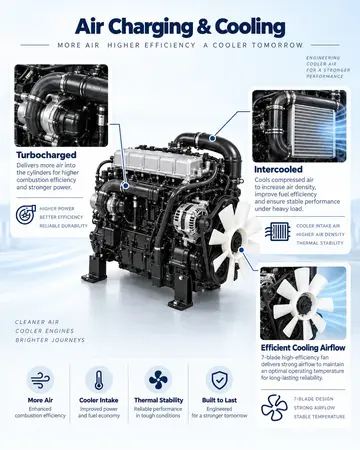

  • Turbocharger with intercooler for higher air density and efficiency
  • 7-blade high-efficiency cooling fan for stable operating temperatures

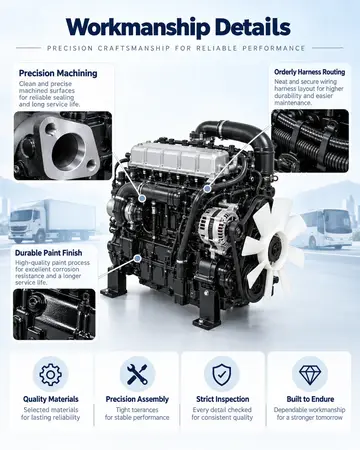

  • Machined flange faces and orderly wiring harness routing for reliable service

Typical applications

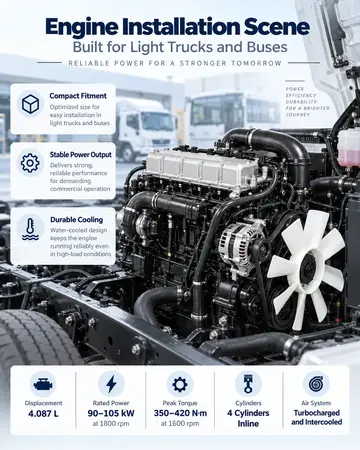

  • Light trucks and commercial transport vehicles
  • Buses and passenger transport
  • Demanding commercial workloads

Customization options

  • OEM configuration to match vehicle mounting and interface requirements
  • Multiple paint color options available
  • Spare parts packages and after-sales support

Ordering information

  • Warranty: 1 year
  • Machinery test report and video outgoing-inspection provided

Frequently asked questions

What is the Yangchai YZ4105ZLQ Truck & Bus Diesel Engine used for?
  • Light trucks and commercial transport vehicles - Buses and passenger transport - Demanding commercial workloads
Can the Yangchai YZ4105ZLQ Truck & Bus Diesel Engine be customized?
  • OEM configuration to match vehicle mounting and interface requirements - Multiple paint color options available - Spare parts packages and after-sales support
How is it inspected, packed and shipped?

Each unit is checked against your order before dispatch, with a written outgoing-inspection report and video (machinery is run-tested). Goods are packed in export wooden-box or crate packing and shipped FOB or CIF from Shanghai; stock items ship promptly and built-to-order items typically within about 20 working days.

How do I get a price for the Yangchai YZ4105ZLQ Truck & Bus Diesel Engine?

Send an inquiry with the required configuration, quantity and destination port using the form on this page, email inquiry@marine-equipment-supply.com or WhatsApp +86 176 2154 1688. We reply with a matched recommendation and quotation within 24 hours on working days.

Get a quotation for the Yangchai YZ4105ZLQ Truck & Bus Diesel Engine

Tell us the configuration, quantity and destination port. We reply within 24 hours on working days.
